16XL025-6FA4 Imperial Pitch Pulleys

16XL025-6FA4 - Aluminum Imperial Pitch Pulleys

Product Details for 16XL025-6FA4

Comparable to: A 6A3-16DF02510, A6A3-16DF02510, TP20A5W4-16, 16XL025-1A X 5/16

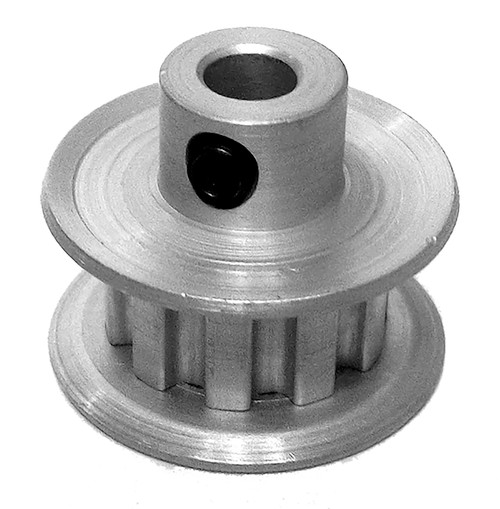

16XL025-6FA4, Timing Pulley, Aluminum, Clear Anodized

Specifications

Product Number 16XL025-6FA4
Teeth 16
Tooth Style XL
For Belt Width (in) 0.250
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 1.019
Outside Diameter (in) 0.999
Flange Diameter (in) 1.250
Face Width (in) 0.438
Overall Length (in) 0.688
Hub Diameter (in) 0.688
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.3125
Pulley Belt Width (in) 0.310
Unit System Inch
Max. Bore (in) 0.438
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference A 6A3-16DF02510, A6A3-16DF02510, TP20A5W4-16, 16XL025-1A X 5/16
Set Screw Quantity 2
