16MP025MIA5 Metric Pulleys

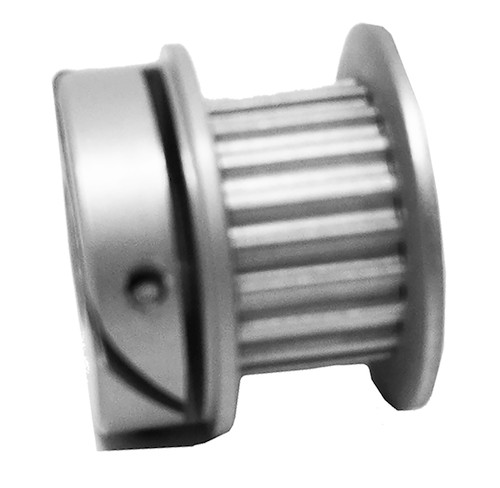

16MP025MIA5 - E-Z Lock Hub Aluminum Metric Pulleys

Product Details for 16MP025MIA5

Comparable to: A 6D16M016DF6005, A6D16M016DF6005

16MP025MIA5, Timing Pulley, Aluminum, Clear Anodized

Specifications

Product Number 16MP025MIA5
Teeth 16
Tooth Style MXL
For Belt Width (in) 0.250
Type 6CI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 5.00
Face Width (in) 0.330
Unit System Metric
P.D. (mm) 10.30
O.D. (mm) 9.80
Flange Diameter (mm) 14.70
Overall Length (mm) 14.50
Hub Diameter (mm) 14.70
Number & Screw Size 1 x M3
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6D16M016DF6005, A6D16M016DF6005
Set Screw Quantity 1
