16MP025M6CA4 Metric Pulleys

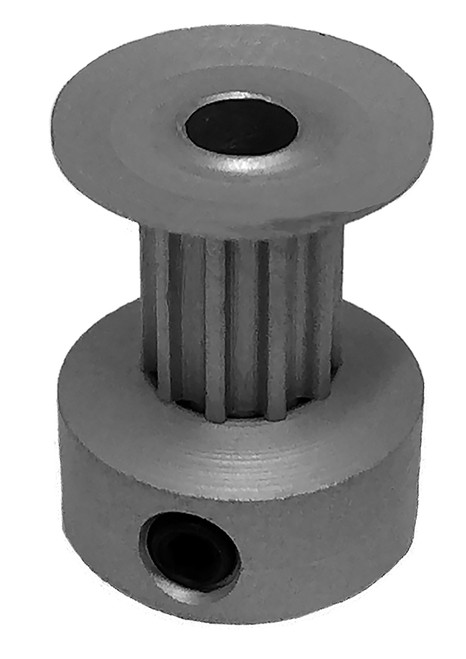

16MP025M6CA4, Timing Pulley, Aluminum, Clear Anodized
Specifications
| Product Number | 16MP025M6CA4 |
| Teeth | 16 |
| Tooth Style | MXL |
| For Belt Width (in) | 0.250 |
| Type | 6C |
| Material | Aluminum |
| Finish | Clear Anodized |
| Flange Material | Aluminum |
| Bore Type | Finished Bore |
| Bore (mm) | 4.00 |
| Face Width (in) | 0.330 |
| Pulley Belt Width (mm) | 7.20 |
| Unit System | Metric |
| P.D. (mm) | 10.30 |
| O.D. (mm) | 9.80 |
| Flange Diameter (mm) | 14.70 |
| Overall Length (mm) | 14.30 |
| Hub Diameter (mm) | 14.70 |
| MOQ | 1 |
| Weight (lb) | 0.01 |
| Part Number Cross Reference | A 6A16M016DF6004, A6A16M016DF6004 |
| Set Screw Quantity | 1 |
