16L100-6FS6 Imperial Pitch Pulleys

16L100-6FS6 - Steel Imperial Pitch Pulleys

Product Details for 16L100-6FS6

Comparable to: PB16L100, 78230731, 16L100, 16L100-1/2, 20181908, 113551, P16L100

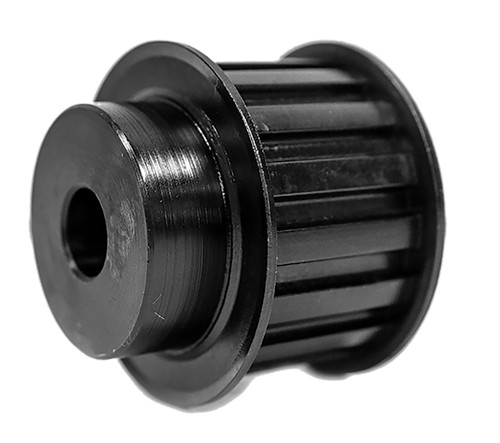

16L100-6FS6, Timing Pulley, Steel, Black Oxide

Specifications

Product Number 16L100-6FS6
Teeth 16
Tooth Style L
For Belt Width (in) 1.000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 1.910
Outside Diameter (in) 1.880
Flange Diameter (in) 2.125
Face Width (in) 1.250
Overall Length (in) 1.750
Hub Diameter (in) 1.437
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.070
Unit System Inch
MOQ 1
Weight (lb) 1.12
Part Number Cross Reference PB16L100, 78230731, 16L100, 16L100-1/2, 20181908, 113551, P16L100
