16-3P09-6CA2 Powerhouse® Pulleys

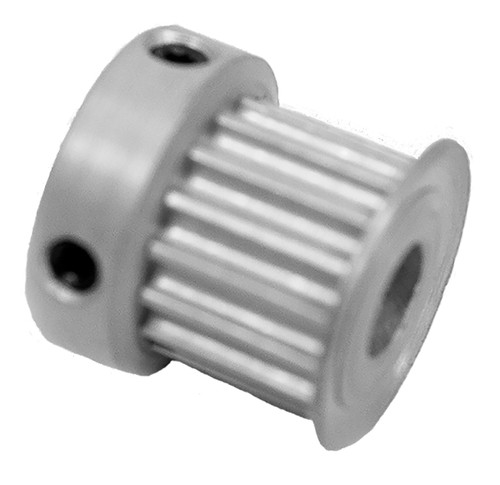

16-3P09-6CA2, Timing Pulley, Aluminum, Clear Anodized
Specifications
| Product Number | 16-3P09-6CA2 |
| Teeth | 16 |
| Tooth Style | 3P |
| For Belt Width (mm) | 9 |
| Type | 6C |
| Material | Aluminum |
| Finish | Clear Anodized |
| Flange Material | Aluminum |
| Bore Type | Finished Bore |
| Bore (in) | 3/16 Inch Finished Bore |
| Pitch Diameter (in) | 0.602 |
| Outside Diameter (in) | 0.572 |
| Flange Diameter (in) | 0.710 |
| Face Width (in) | 0.453 |
| Overall Length (in) | 0.691 |
| Hub Diameter (in) | 0.710 |
| Min. Bore (in) | 0.1875 |
| Pulley Belt Width (in) | 0.400 |
| Unit System | Inch |
| MOQ | 1 |
| Weight (lb) | 0.02 |
| Part Number Cross Reference | A 6A53-016DF0906, A6A53-016DF0906, 3MR-16S-09, 78436001, TP3A2W9-16 |
| Set Screw Quantity | 2 |
