15XL037-6FS5, Timing Pulley

15XL037-6FS5 - Steel Imperial Pitch Pulleys

15XL037-6FS5

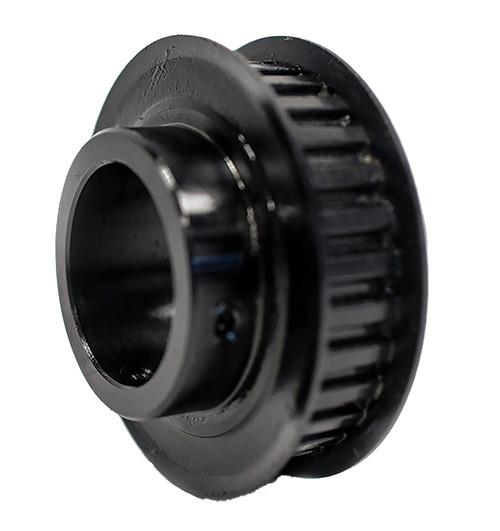

15XL037-6FS5, Timing Pulley, Steel, Black Oxide

Learn more about 15XL037-6FS5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	15XL037-6FS5
Teeth	15
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.375
Bore Description	3/8 Inch Minimum Plain Bore
Pitch Diameter (in)	0.955
Outside Diameter (in)	0.935
Flange Diameter (in)	1.188
Face Width (in)	0.563
Overall Length (in)	0.812
Hub Diameter (in)	0.750
Min. Bore (in)	0.375
Pulley Belt Width (in)	0.430
Unit System	Inch
P.D. (mm)	24.00
O.D. (mm)	23.70
MOQ	1
Weight (lb)	0.12
Part Number Cross Reference	A 6C3-15DF03712, A6C3-15DF03712, 15XL037 3/8 6FS, 15XL037-1S X 3/8, 15XL037-6FS5, 15XL037-6FS5
Set Screw Quantity	2

Comparable to: A 6C3-15DF03712, A6C3-15DF03712, 15XL037 3/8 6FS, 15XL037-1S X 3/8, 15XL037-6FS5, 15XL037-6FS5
