15XL037-6FS3 Imperial Pitch Pulleys

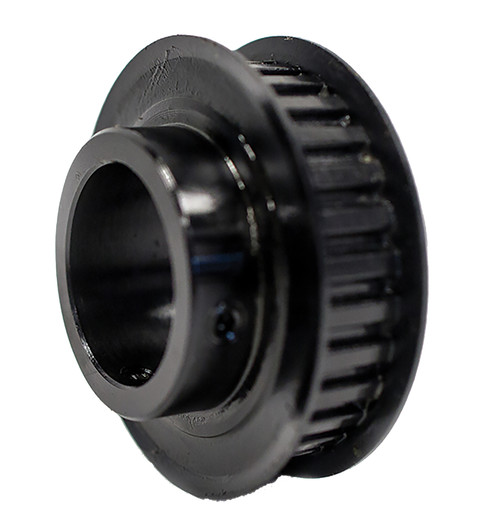

15XL037-6FS3, Timing Pulley, Steel, Black Oxide
Specifications
| Product Number | 15XL037-6FS3 |
| Teeth | 15 |
| Tooth Style | XL |
| For Belt Width (in) | 0.375 |
| Type | 6F |
| Material | Steel |
| Finish | Black Oxide |
| Flange Material | Steel |
| Bore Type | Minimum Plain Bore |
| Bore (in) | 1/4 Inch Minimum Plain Bore |
| Pitch Diameter (in) | 0.955 |
| Outside Diameter (in) | 0.935 |
| Flange Diameter (in) | 1.188 |
| Face Width (in) | 0.563 |
| Overall Length (in) | 0.812 |
| Hub Diameter (in) | 0.625 |
| Min. Bore (in) | 0.250 |
| Pulley Belt Width (in) | 0.430 |
| Unit System | Inch |
| MOQ | 1 |
| Weight (lb) | 0.12 |
| Part Number Cross Reference | A 6C3-15DF03708, A6C3-15DF03708, PB15XL037, 78230126, 15XL037, 15XL037-1S X 1/4, 1430743, 15XLB037S, 15XL037-1/4, 20181901, 113404, 15XL037MPB, P15XL037 |
| Set Screw Quantity | 2 |
