15T10-PS160A Bar Stock

15T10-PS160A, A6A38M015T16, A 6A38M015T16, 15T10-PS-160

Product Details for 15T10-PS160A

Comparable to: A 6A38M015T16, A6A38M015T16, 15T10-PS-160, T1015

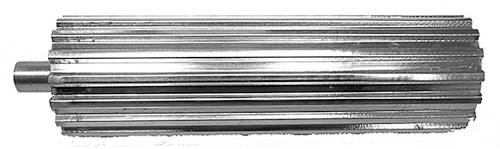

15T10-PS160A, Timing Pulley Stock, Aluminum

Specifications

Product Number 15T10-PS160A
Teeth 15
Tooth Style T10mm
Material Aluminum
Pitch Diameter (in) 1.886
Outside Diameter (in) 1.807
Overall Length (in) 7.100
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 47.90
O.D. (mm) 45.90
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
MOQ 1
Weight (lb) 1.49
Part Number Cross Reference A 6A38M015T16, A6A38M015T16, 15T10-PS-160, T1015
Shank Length (in) 0.8000
