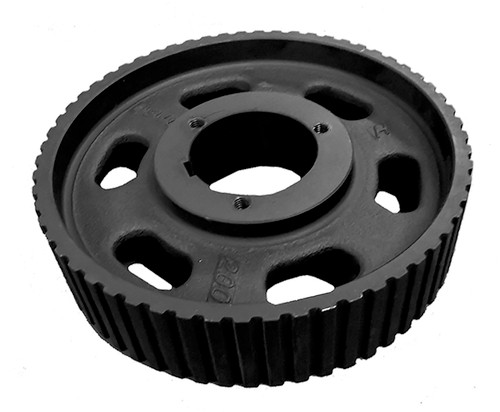

156HR200, Timing Pulley, Cast Iron
Specifications
| Product Number | 156HR200 |
| Teeth | 156 |
| Tooth Style | H |
| For Belt Width (in) | 2.000 |
| Type | A3 |
| Material | Cast Iron |
| Bore Type | Split Taper |
| Bore (in) | R1 |
| Pitch Diameter (in) | 24.828 |
| Outside Diameter (in) | 24.774 |
| Face Width (in) | 2.875 |
| Overall Length (in) | 3.406 |
| Min. Bore (in) | 1.125 |
| Unit System | Inch |
| Bushing | R1 |
| MOQ | 1 |
| Weight (lb) | 51.00 |
| Part Number Cross Reference | 1057454, 156HR200 |
