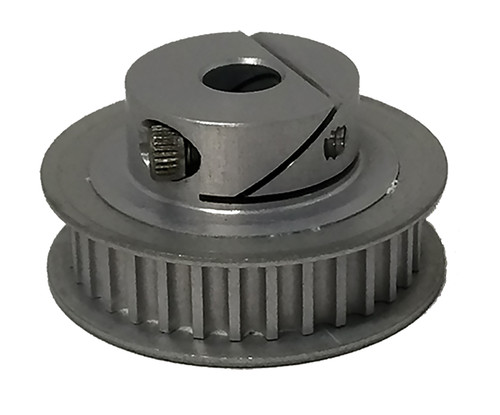

15-3M06-IA2, Timing Pulley

15-3M06-IA2 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys

15-3M06-IA2

15-3M06-IA2, Timing Pulley, Aluminum, Clear Anodized

Learn more about 15-3M06-IA2 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 15-3M06-IA2
Teeth 15
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore (in) 0.188
Bore Description 3/16 Inch Finished Bore
Pitch Diameter (in) 0.564
Outside Diameter (in) 0.534
Flange Diameter (in) 0.685
Face Width (in) 0.334
Overall Length (in) 0.563
Hub Diameter (in) 0.625
Min. Bore (in) 0.1875
Unit System Inch
P.D. (mm) 14.00
O.D. (mm) 13.60
Number & Screw Size 1 x 2-56
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 15-3M06-IA2, 15-3M06-IA2
