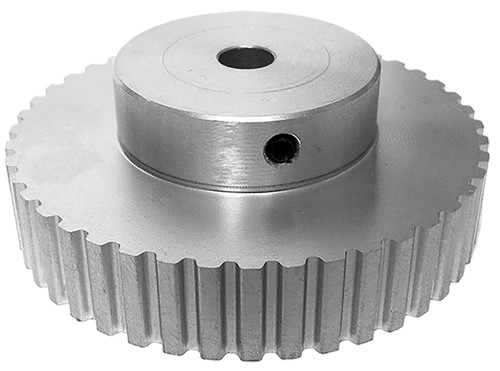

14XL037-6A3, Timing Pulley

14XL037-6A3

14XL037-6A3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 14XL037-6A3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	14XL037-6A3
Teeth	14
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.891
Outside Diameter (in)	0.871
Face Width (in)	0.563
Overall Length (in)	0.812
Hub Diameter (in)	0.625
Min. Bore (in)	0.25
Unit System	Inch
P.D. (mm)	23.00
O.D. (mm)	22.10
MOQ	1
Weight (lb)	0.04
Part Number Cross Reference	A 6A3-14NF03708, A6A3-14NF03708, 14XL037 X 1/4 6A, PT014D08L06N, 14XL037-2A X 1/4, 14XL037-6A3, 14XL037-6A3
Set Screw Quantity	2
