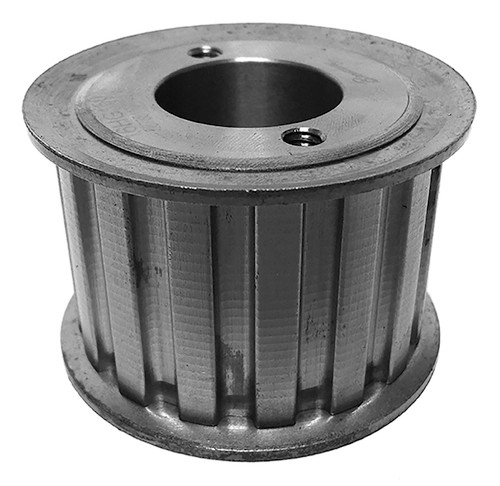

14HG150, Timing Pulley

14HG150 - Steel Imperial Pitch Pulleys

14HG150

14HG150, Timing Pulley, Steel

Learn more about 14HG150 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 14HG150
Teeth 14
Tooth Style H
For Belt Width (in) 1.5000
Type 4
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for G Bushing
Pitch Diameter (in) 2.228
Outside Diameter (in) 2.174
Flange Diameter (in) 2.438
Face Width (in) 1.750
Overall Length (in) 2.375
Min. Bore (in) 0.375
Unit System Inch
Bushing G
P.D. (mm) 57.00
O.D. (mm) 55.20
MOQ 1
Weight (lb) 1.33
Part Number Cross Reference 14HG150, 14HG150, 14HG150
