14H150-6FS8, Timing Pulley

14H150-6FS8 - Steel Imperial Pitch Pulleys

14H150-6FS8

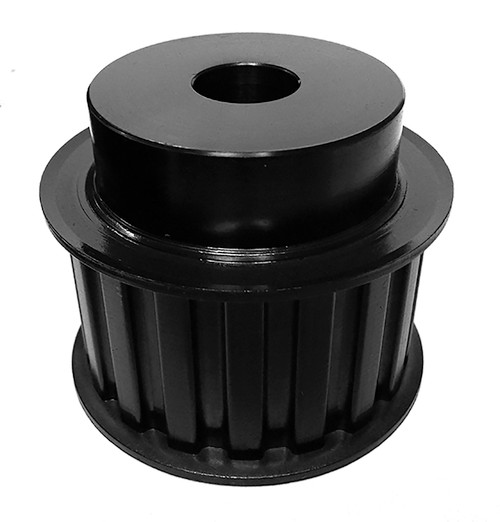

14H150-6FS8, Timing Pulley, Steel, Black Oxide

Learn more about 14H150-6FS8 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	14H150-6FS8
Teeth	14
Tooth Style	H
For Belt Width (in)	1.5000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.750
Bore Description	3/4 Inch Minimum Plain Bore
Pitch Diameter (in)	2.228
Outside Diameter (in)	2.174
Flange Diameter (in)	2.461
Face Width (in)	1.812
Overall Length (in)	2.375
Hub Diameter (in)	1.625
Min. Bore (in)	0.75
Pulley Belt Width (in)	1.562
Unit System	Inch
P.D. (mm)	57.00
O.D. (mm)	55.20
MOQ	1
Weight (lb)	1.91
Part Number Cross Reference	14H150, 14HB150, 14H150 X 3/4 MPB, 14H150MPB, P14H150, 35376557, P14H150-PB, 14H150-6FS8, 114344, 14H150-6FS8

Comparable to: 14H150, 14HB150, 14H150 X 3/4 MPB, 14H150MPB, P14H150, 35376557, P14H150-PB, 14H150-6FS8, 114344, 14H150-6FS8

Documentation

Download Catalog

General Characteristics

Pulley Tolerances

Part Number Nomenclature Chart

Drive Alignment Guide
