140-8MX21-2517, Timing Pulley

140-8MX21-2517

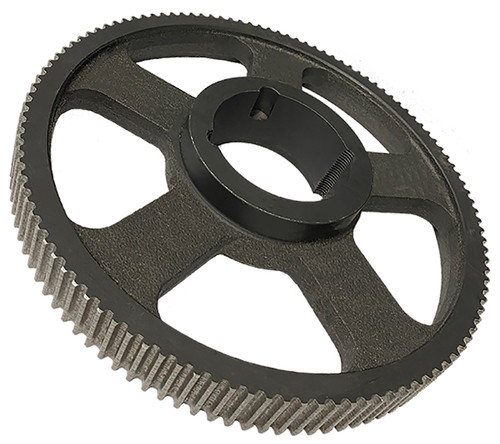

140-8MX21-2517, Timing Pulley, Cast Iron, Black Oxide

Learn more about 140-8MX21-2517 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	140-8MX21-2517
Teeth	140
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	C-3
Material	Ductile Iron
Finish	Black Oxide
Bore Type	TL
Bore Description	Bored for 2517 Bushing
Pitch Diameter (in)	14.036
Outside Diameter (in)	13.973
Face Width (in)	1.203
Overall Length (in)	1.750
Min. Bore (in)	0.5
Unit System	Inch
Bushing	2517
P.D. (mm)	356.00
O.D. (mm)	354.90
MOQ	1
Weight (lb)	24.10
Part Number Cross Reference	8MX-140S-21, B8MCS-140-21, 140G-8M-21-2517, 20839768, 8MX-140S-21-2517 HT500 SPKT, 8MPC140S21, 140-8MX21-2517, 481947, 140-8MX21-2517
