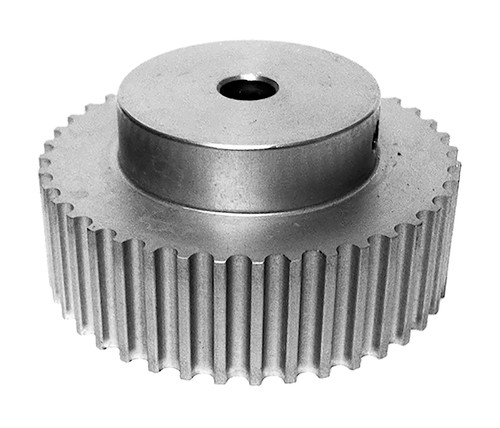

14-5M15-6A3, Timing Pulley

14-5M15-6A3 - Aluminum Powerhouse®HTD® Pulleys

14-5M15-6A3

14-5M15-6A3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 14-5M15-6A3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	14-5M15-6A3
Teeth	14
Tooth Style	HTD5mm
For Belt Width (mm)	15.00
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.877
Outside Diameter (in)	0.832
Face Width (in)	0.781
Overall Length (in)	1.032
Hub Diameter (in)	0.500
Min. Bore (in)	0.25
Unit System	Inch
P.D. (mm)	22.00
O.D. (mm)	21.10
MOQ	1
Weight (lb)	0.06
Part Number Cross Reference	A 6A25-014NF1508, A6A25-014NF1508, 14M5-L015-6, PT014G08L15N, 14-5M15-6A3, 14-5M15-6A3
Set Screw Quantity	2

Related Products

Comparable to: A 6A25-014NF1508, A6A25-014NF1508, 14M5-L015-6, PT014G08L15N, 14-5M15-6A3, 14-5M15-6A3
