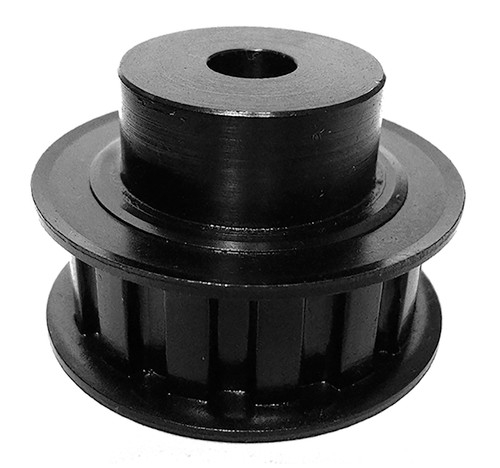

13L050-6FS5, Timing Pulley

13L050-6FS5

13L050-6FS5, Timing Pulley, Steel, Black Oxide

Learn more about 13L050-6FS5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	13L050-6FS5
Teeth	13
Tooth Style	L
For Belt Width (in)	0.5000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.375
Bore Description	3/8 Inch Minimum Plain Bore
Pitch Diameter (in)	1.552
Outside Diameter (in)	1.522
Flange Diameter (in)	1.781
Face Width (in)	0.750
Overall Length (in)	1.250
Hub Diameter (in)	1.125
Min. Bore (in)	0.375
Pulley Belt Width (in)	0.570
Unit System	Inch
P.D. (mm)	39.00
O.D. (mm)	38.70
MOQ	1
Weight (lb)	0.50
Part Number Cross Reference	A 6C4-13DFB5012, A6C4-13DFB5012, PB13L050, 13L050, 13LB050, 13L050 X 3/8 MPB, 13L050, 13L050MPB, P13L050.3, 35376045, P13L050-PB, 13L050-6FS5, 114441, 13L050-6FS5
