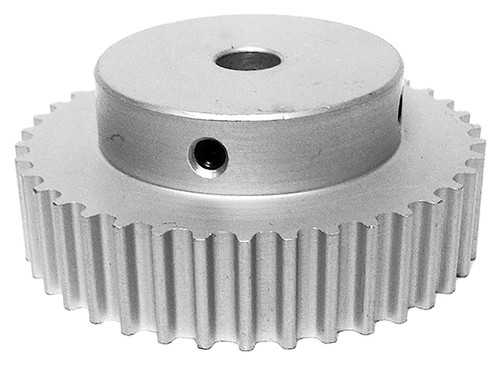

13-5M09M6A6, Timing Pulley

13-5M09M6A6 - Aluminum Powerhouse®HTD® Pulleys

13-5M09M6A6

13-5M09M6A6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 13-5M09M6A6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 13-5M09M6A6
Teeth 13
Tooth Style HTD5mm
For Belt Width (mm) 9.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.815
Outside Diameter (in) 0.770
Face Width (in) 0.547
Pulley Belt Width (mm) 9.00
Unit System Metric
P.D. (mm) 21.00
O.D. (mm) 19.50
Face Width (mm) 13.90
Overall Length (mm) 20.20
Hub Diameter (mm) 12.70
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference A 6A25M013NF0906, A6A25M013NF0906, 13-5M09M6A6, 13-5M09M6A6
Set Screw Quantity 1
