12XL037-6FS4 Imperial Pitch Pulleys

12XL037-6FS4

Product Details for 12XL037-6FS4

Comparable to: 12XL037-6FS4,

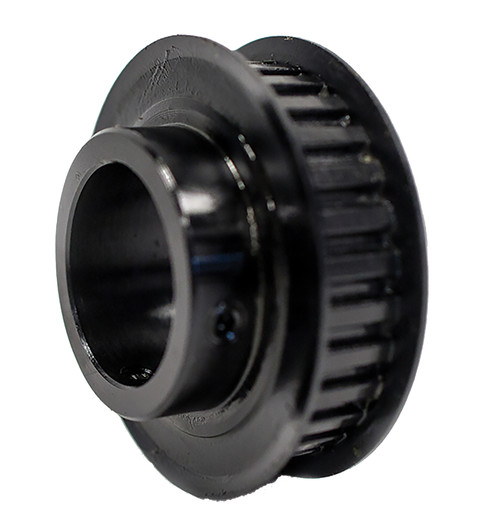

12XL037-6FS4, Timing Pulley, Powerhouse Timing, 5/16 Inch Bore, Steel

Specifications

Product Number 12XL037-6FS4
Teeth 12
Tooth Style XL
For Belt Width (in) 0.375
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Finished Bore
Bore (in) 0.313
Pitch Diameter (in) 0.764
Outside Diameter (in) 0.744
Flange Diameter (in) 1.000
Face Width (in) 0.563
Overall Length (in) 0.812
Hub Diameter (in) 0.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.313
Pulley Belt Width (in) 0.430
Unit System Inch
Weight (lb) 0.06
List Price (1-9 Qty.) (CAD) 16.15
Discount Price (10-24 Qty.) (CAD) 14.53
Discount Price (25-49 Qty.) (CAD) 11.3
Discount Price (50-99 Qty.) (CAD) 9.69
Discount Price (100-249 Qty.) (CAD) 8.07
Part Number Cross Reference 12XL037-6FS4,

Documentation

Download Catalog 2015_TGW_CATALOG_25.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
