12XL037-6FS2 Imperial Pitch Pulleys

12XL037-6FS2 - Steel Imperial Pitch Pulleys

Product Details for 12XL037-6FS2

Comparable to: 12XL037-6FS2, A 6C3-12DF03706, A6C3-12DF03706, PB12XL037, 78230111, 12XLB037S, 12XL037-3/16, 20181888, 113402, 12XL0

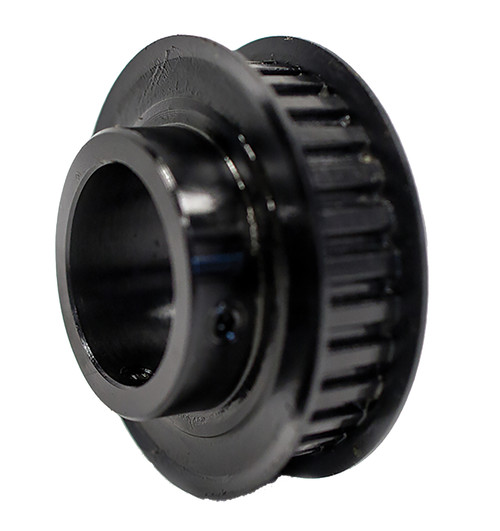

12XL037-6FS2, Timing Pulley, Steel, Black Oxide

Specifications

Product Number 12XL037-6FS2
Teeth 12
Tooth Style XL
For Belt Width (in) 0.375
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Finished Bore
Bore (in) 3/16 Inch Finished Bore
Pitch Diameter (in) 0.764
Outside Diameter (in) 0.744
Flange Diameter (in) 1.000
Face Width (in) 0.563
Overall Length (in) 0.812
Hub Diameter (in) 0.500
Set Screw 2 x 6-40 @ 90°
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.430
Unit System Inch
Max. Bore (in) 0.25
Weight (lb) 0.11
Part Number Cross Reference 12XL037-6FS2, A 6C3-12DF03706, A6C3-12DF03706, PB12XL037, 78230111, 12XLB037S, 12XL037-3/16, 20181888, 113402, 12XL0
