12XL025M6FA6 Imperial Pitch Pulleys

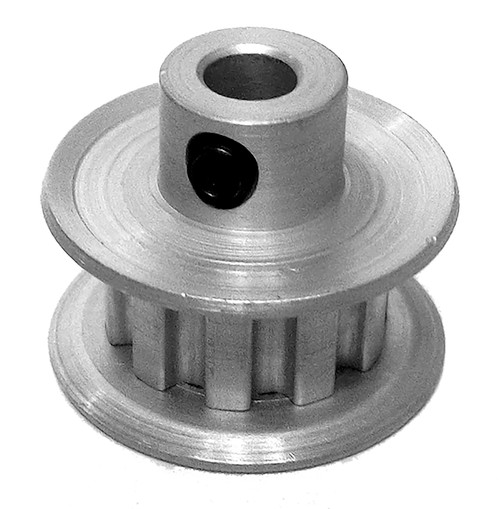

12XL025M6FA6, Timing Pulley, Aluminum, Clear Anodized
Specifications
| Product Number | 12XL025M6FA6 |
| Teeth | 12 |
| Tooth Style | XL |
| For Belt Width (in) | 0.250 |
| Type | 6F |
| Material | Aluminum |
| Finish | Clear Anodized |
| Flange Material | Aluminum |
| Bore Type | Finished Bore |
| Bore (mm) | 6.00 |
| Set Screw | 2 x M3 @ 90° |
| Pulley Belt Width (mm) | 7.90 |
| Unit System | Inch |
| P.D. (mm) | 19.40 |
| O.D. (mm) | 18.90 |
| Flange Diameter (mm) | 25.00 |
| Face Width (mm) | 11.10 |
| Overall Length (mm) | 17.50 |
| Hub Diameter (mm) | 13.00 |
| MOQ | 1 |
| Weight (lb) | 0.02 |
| Part Number Cross Reference | A 6A3M012DF06006, A6A3M012DF06006 |
| Set Screw Quantity | 2 |
