12XL025-6FA2 Imperial Pitch Pulleys

12XL025-6FA2, A 6A3-12DF02506, PB12XL025, 78231502, PT012D06L04T, TP20A3W4-12

Product Details for 12XL025-6FA2

Comparable to: 12XL025-6FA2, A 6A3-12DF02506, PB12XL025, 78231502, PT012D06L04T, TP20A3W4-12

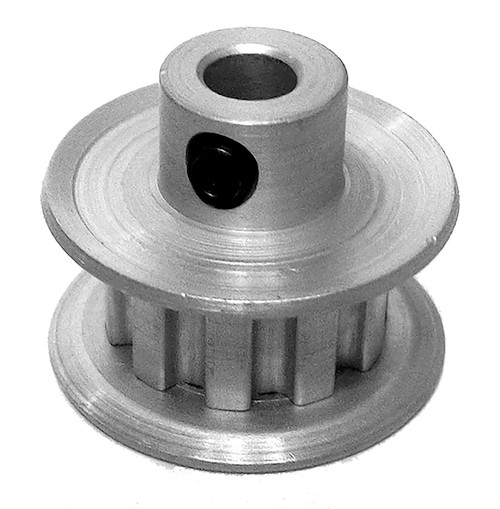

12XL025-6FA2, Timing Pulley, Powerhouse Timing, 3/16 Inch Bore, Aluminum

Specifications

Product Number 12XL025-6FA2
Teeth 12
Tooth Style XL
For Belt Width (in) 0.250
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.188
Pitch Diameter (in) 0.764
Outside Diameter (in) 0.744
Flange Diameter (in) 1.000
Face Width (in) 0.438
Overall Length (in) 0.688
Hub Diameter (in) 0.500
Set Screw 2 x 6-40 @ 90°
Min. Bore (in) 0.188
Pulley Belt Width (in) 0.310
Unit System Inch
Weight (lb) 0.03
List Price (1-9 Qty.) (CAD) 13.2
Discount Price (10-24 Qty.) (CAD) 12.21
Discount Price (25-49 Qty.) (CAD) 9.9
Discount Price (50-99 Qty.) (CAD) 7.92
Discount Price (100-249 Qty.) (CAD) 6.6
Part Number Cross Reference 12XL025-6FA2, A 6A3-12DF02506, PB12XL025, 78231502, PT012D06L04T, TP20A3W4-12

Documentation

Download Catalog 2015_TGW_CATALOG_16.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
