12T10-PS140A Bar Stock

12T10-PS140A, A6A38M012T14, A 6A38M012T14, 12T10-PS-140

Product Details for 12T10-PS140A

Comparable to: 12T10-PS140A, A 6A38M012T14, A6A38M012T14, 12T10-PS-1

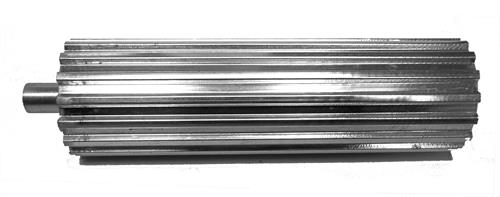

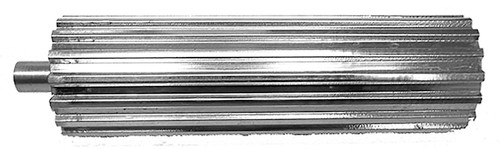

12T10-PS140A, Timing Pulley Stock, Aluminum, Clear Anodized

Specifications

Product Number 12T10-PS140A
Teeth 12
Tooth Style T10mm
Material Aluminum
Finish Clear Anodized
Pitch Diameter (in) 1.510
Outside Diameter (in) 1.431
Overall Length (in) 7.100
Unit System Metric
Min. Usable Length (in) 5.500
P.D. (mm) 38.40
O.D. (mm) 36.30
Min. Usable Length (mm) 140.00
Overall Length (mm) 165.00
Weight (lb) 0.82
Part Number Cross Reference 12T10-PS140A, A 6A38M012T14, A6A38M012T14, 12T10-PS-1
