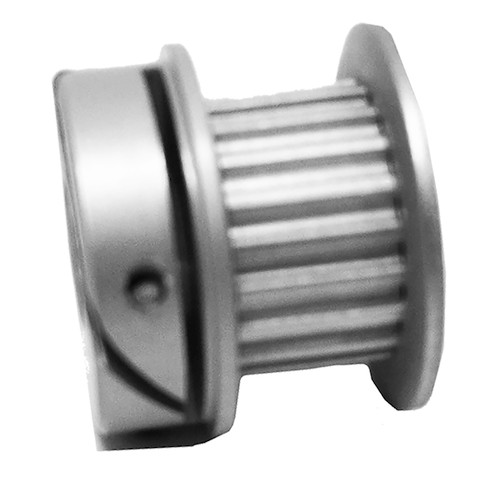

12MP025MIA3, Timing Pulley

12MP025MIA3 - E-Z Lock Hub Aluminum Metric Pulleys

12MP025MIA3

12MP025MIA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 12MP025MIA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 12MP025MIA3
Teeth 12
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6CI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type EZ Lock
Bore Description 3 mm Finished Bore
Bore (mm) 3.00
Pitch Diameter (in) 0.306
Outside Diameter (in) 0.286
Flange Diameter (in) 0.470
Face Width (in) 0.330
Unit System Metric
P.D. (mm) 8.00
O.D. (mm) 7.30
Flange Diameter (mm) 12.20
Overall Length (mm) 14.50
Hub Diameter (mm) 12.20
Number & Screw Size 1 x M3
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A6D16M012DF6003, 12MP025MIA3, 12MP025MIA3
