12MP025-IA1, Timing Pulley

12MP025-IA1 - E-Z Lock Hub Aluminum Imperial Pitch Pulleys

12MP025-IA1

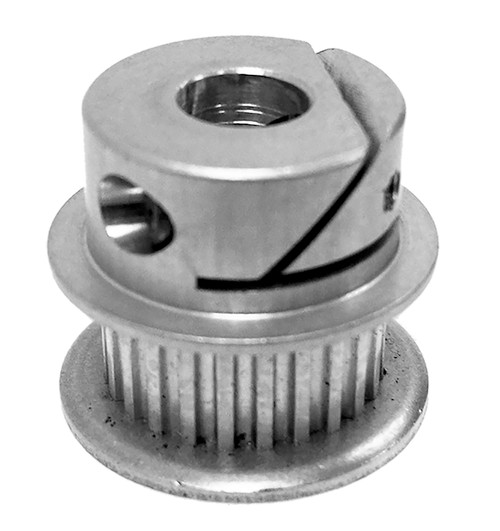

12MP025-IA1, Timing Pulley, Aluminum, Clear Anodized

Learn more about 12MP025-IA1 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 12MP025-IA1
Teeth 12
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6CI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type EZ Lock
Bore (in) 0.125
Bore Description 1/8 Inch Finished Bore
Pitch Diameter (in) 0.306
Outside Diameter (in) 0.286
Flange Diameter (in) 0.480
Face Width (in) 0.330
Overall Length (in) 0.563
Hub Diameter (in) 0.480
Min. Bore (in) 0.125
Unit System Inch
P.D. (mm) 8.00
O.D. (mm) 7.30
Number & Screw Size 1 x 2-56
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference 12MP025-IA1, 12MP025-IA1
Set Screw Quantity 1
