12L050-6FS5, Timing Pulley

12L050-6FS5 - Steel Imperial Pitch Pulleys

12L050-6FS5

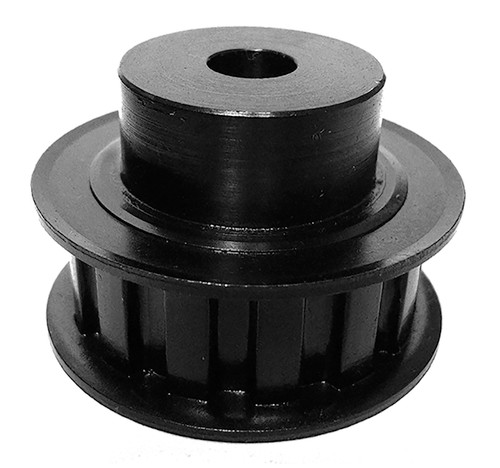

12L050-6FS5, Timing Pulley, Steel, Black Oxide

Learn more about 12L050-6FS5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 12L050-6FS5
Teeth 12
Tooth Style L
For Belt Width (in) 0.5000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.375
Bore Description 3/8 Inch Minimum Plain Bore
Pitch Diameter (in) 1.432
Outside Diameter (in) 1.402
Flange Diameter (in) 1.656
Face Width (in) 0.750
Overall Length (in) 1.250
Hub Diameter (in) 1.000
Min. Bore (in) 0.375
Pulley Belt Width (in) 0.570
Unit System Inch
P.D. (mm) 36.00
O.D. (mm) 35.60
MOQ 1
Weight (lb) 0.43
Part Number Cross Reference A 6C4-12DFB5012, A6C4-12DFB5012, PB12L050, 12L050, 12LB050, 12L050-3/8, 20181886, 12L050 X 3/8 MPB, 12L050, 12L050MPB, P12L050, 6495K24, 35376029, P12L050-PB, 12L050-6FS5, 113451, 12L050-6FS5

Comparable to: A 6C4-12DFB5012, A6C4-12DFB5012, PB12L050, 12L050, 12LB050, 12L050-3/8, 20181886, 12L050 X 3/8 MPB, 12L050, 12L050MPB, P12L050, 6495K24, 35376029, P12L050-PB, 12L050-6FS5, 113451, 12L050-6FS5
