120MP037-6A5, Timing Pulley

120MP037-6A5 - Aluminum Imperial Pitch Pulleys

120MP037-6A5

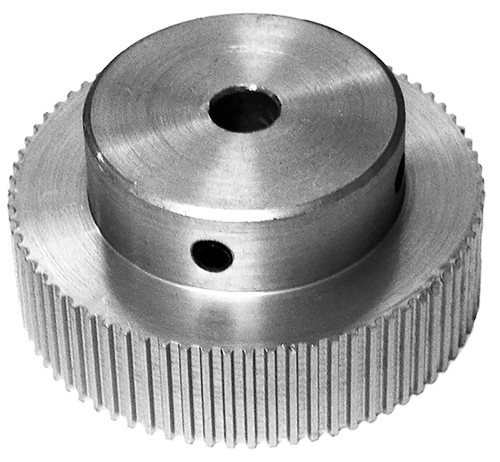

120MP037-6A5, Timing Pulley, Aluminum, Clear Anodized

Learn more about 120MP037-6A5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	120MP037-6A5
Teeth	120
Tooth Style	MXL
For Belt Width (in)	0.3750
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	3.056
Outside Diameter (in)	3.036
Face Width (in)	0.500
Overall Length (in)	0.875
Hub Diameter (in)	1.500
Min. Bore (in)	0.375
Pulley Belt Width (in)	0.500
Unit System	Inch
P.D. (mm)	78.00
O.D. (mm)	77.10
MOQ	1
Weight (lb)	0.47
Part Number Cross Reference	A 6A16-120NF3712, A6A16-120NF3712, 120MP-037 3/8 6, 120MXL037-2A X 3/8, 120MP037-6A5, 120MP037-6A5
Set Screw Quantity	2

Comparable to: A 6A16-120NF3712, A6A16-120NF3712, 120MP-037 3/8 6, 120MXL037-2A X 3/8, 120MP037-6A5, 120MP037-6A5

Documentation

Download Catalog

General Characteristics

Pulley Tolerances

Part Number Nomenclature Chart

Drive Alignment Guide

For custom parts click here

RoHS Certification
