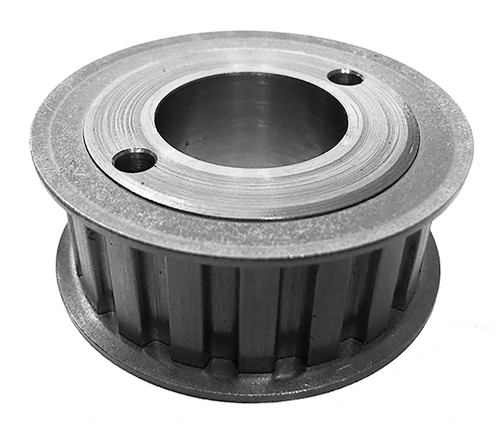

120LH075, Timing Pulley

120LH075 - Cast Iron Imperial Pitch Pulleys

120LH075

120LH075, Timing Pulley, Cast Iron

Learn more about 120LH075 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 120LH075
Teeth 120
Tooth Style L
For Belt Width (in) 0.7500
Type 17
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 14.324
Outside Diameter (in) 14.294
Face Width (in) 1.000
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 364.00
O.D. (mm) 363.10
MOQ 1
Weight (lb) 12.42
Part Number Cross Reference 120LH075, 120LH075, 120LH075
