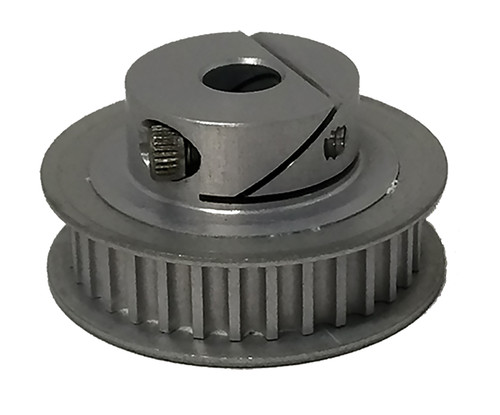

12-3M06-IA2, Timing Pulley

12-3M06-IA2 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys

12-3M06-IA2

12-3M06-IA2, Timing Pulley, Aluminum, Clear Anodized

Learn more about 12-3M06-IA2 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 12-3M06-IA2
Teeth 12
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6CI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore (in) 0.188
Bore Description 3/16 Inch Finished Bore
Pitch Diameter (in) 0.451
Outside Diameter (in) 0.421
Flange Diameter (in) 0.580
Face Width (in) 0.327
Overall Length (in) 0.563
Hub Diameter (in) 0.580
Min. Bore (in) 0.1875
Unit System Inch
P.D. (mm) 12.00
O.D. (mm) 10.70
Number & Screw Size 1 x 2-56
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 12-3M06-IA2, 12-3M06-IA2
