12-3M06-6CA2, Timing Pulley

12-3M06-6CA2 - Aluminum Powerhouse®HTD® Pulleys

12-3M06-6CA2

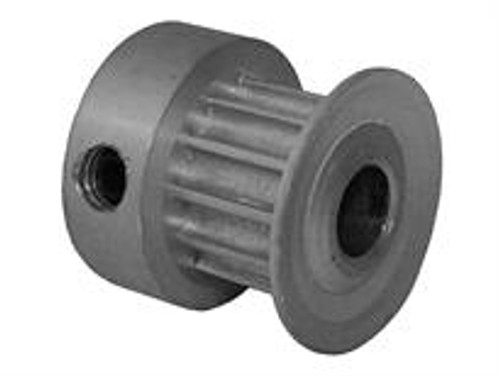

12-3M06-6CA2, Timing Pulley, Aluminum, Clear Anodized

Learn more about 12-3M06-6CA2 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 12-3M06-6CA2
Teeth 12
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.188
Bore Description 3/16 Inch Finished Bore
Pitch Diameter (in) 0.451
Outside Diameter (in) 0.421
Flange Diameter (in) 0.580
Face Width (in) 0.327
Overall Length (in) 0.562
Hub Diameter (in) 0.580
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.280
Unit System Inch
P.D. (mm) 12.00
O.D. (mm) 10.70
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6A23-012DF0606, A6A23-012DF0606, P12-3M-06AL, 12M3-L06M-6FC, PT012F06L06R, 12-3M-06 X 3/16, 12-3M06-6CA2, 12-3M06-6CA2
Set Screw Quantity 1

Related Products

Comparable to: A 6A23-012DF0606, A6A23-012DF0606, P12-3M-06AL, 12M3-L06M-6FC, PT012F06L06R, 12-3M-06 X 3/16, 12-3M06-6CA2, 12-3M06-6CA2
