11XL037M3FA6, Timing Pulley

11XL037M3FA6 - Aluminum Metric Pulleys

11XL037M3FA6

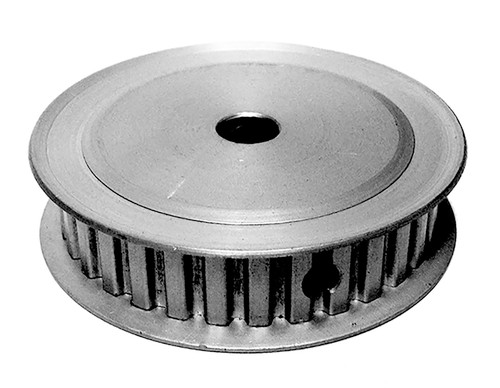

11XL037M3FA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 11XL037M3FA6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 11XL037M3FA6
Teeth 11
Tooth Style XL
For Belt Width (in) 0.3750
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.700
Outside Diameter (in) 0.680
Flange Diameter (in) 0.938
Pulley Belt Width (mm) 10.90
Unit System Inch
P.D. (mm) 18.00
O.D. (mm) 17.30
Flange Diameter (mm) 24.00
Face Width (mm) 14.20
Overall Length (mm) 14.20
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A3M11H09506, A6A3M11H09506, 11XL037M3FA6, 11XL037M3FA6
Set Screw Quantity 1
