112XL025G Imperial Pitch Belts

112XL025G, A6R3-056025, A 6R3-056025, 112XL025

Product Details for 112XL025G

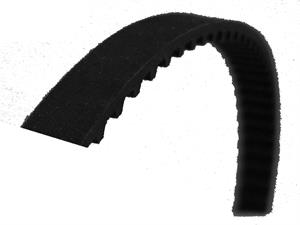

112XL025G, Timing Belt, Powerhouse Timing, Neoprene / Fiberglass

Specifications

Product Number 112XL025G
Teeth 56
Tooth Style XL
Unit System Inch
Belt Type Single Sided
Pitch Length (in) 11.200
Belt Width (in) 0.250
Belt Width (mm) 6.40
Pitch Length (mm) 284.48
Construction Neoprene
Reinforcement Fiberglass
Weight (lb) 0.02
Discount Price (10-24 Qty.) (CAD) 3.74
Discount Price (25-49 Qty.) (CAD) 2.86
Discount Price (50-99 Qty.) (CAD) 2.73
Discount Price (100-249 Qty.) (CAD) 2.46
Part Number Cross Reference 112XL025G, A6R3-056025, A 6R3-056025, 112XL025

Documentation

Download Catalog 2015_TGW_FULL_CATALOG_188.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
TruMotion Features trumotionsyncdata_final_3-8-07.pdf
Belt Tensile Properties trumotionsyncdata_final_3-8-07.pdf
For custom parts click here custom.html
