1125-D5M-09 Powerhouse™ HTD® Belts

1125-D5M-09, TP1125-5M-09

Product Details for 1125-D5M-09

Comparable to: 1125-D5M-09, TP1125-5M-09

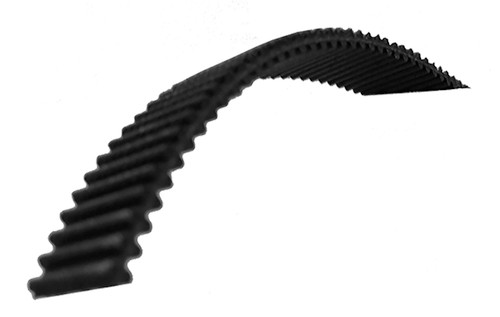

1125-D5M-09, Timing Belt, Powerhouse HTD, Neoprene / Fiberglass, Double Sided Timing Belt

Specifications

Product Number 1125-D5M-09
Teeth 225
Tooth Style HTD 5mm
Unit System Metric
Belt Type Double Sided
Belt Width (mm) 9.00
Pitch Length (mm) 1,125.00
Construction Neoprene
Reinforcement Fiberglass
Weight (lb) 0.11
List Price (1-9 Qty.) (CAD) 43.42
Discount Price (10-24 Qty.) (CAD) 41.25
Discount Price (25-49 Qty.) (CAD) 39.19
Discount Price (50-99 Qty.) (CAD) 37.23
Discount Price (100-249 Qty.) (CAD) 35.37
Part Number Cross Reference 1125-D5M-09, TP1125-5M-09

Documentation

Download Catalog 2015_TGW_CATALOG_224.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
TruMotion Features trumotionsyncdata_final_3-8-07.pdf
Belt Tensile Properties trumotionsyncdata_final_3-8-07.pdf
For custom parts click here custom.html
REACH Certification 1125-D5M-09_REACH_cert
RoHS Certification 1125-D5M-09_RoHS_cert
