112-8P30-2517 Powerhouse™ Pulleys

112-8P30-2517, P112-8MGT-30, 77083112, B1128M30TL, P112-8M-30-2517, 201827

Product Details for 112-8P30-2517

Comparable to: 112-8P30-2517, P112-8MGT-30, 77083112, B1128M30TL, P112-8M-30-2517, 201827

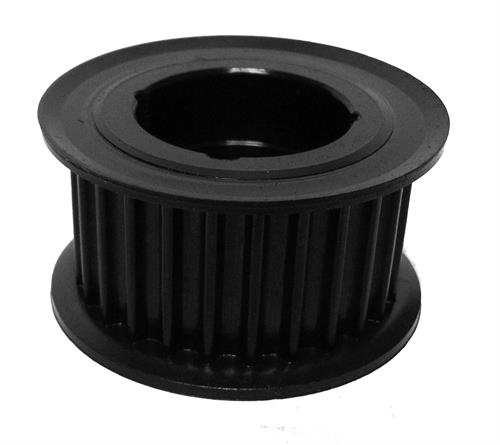

112-8P30-2517, Timing Pulley, Powerhouse, 2517 Bushing, Cast Iron

Specifications

Product Number 112-8P30-2517
Teeth 112
Tooth Style GT 8mm
For Belt Width (mm) 30.000
Type C2
Material Cast Iron
Finish Black Oxide
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 11.229
Outside Diameter (in) 11.175
Face Width (in) 1.500
Overall Length (in) 1.750
Unit System Inch
Bushing 2517
Weight (lb) 25.50
Part Number Cross Reference 112-8P30-2517, P112-8MGT-30, 77083112, B1128M30TL, P112-8M-30-2517, 201827

Documentation

Download Catalog 2015_TGW_CATALOG_142.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
