112-8MX62-3020, Timing Pulley

112-8MX62-3020 - Cast Iron Powerhouse® MX Pulleys

112-8MX62-3020

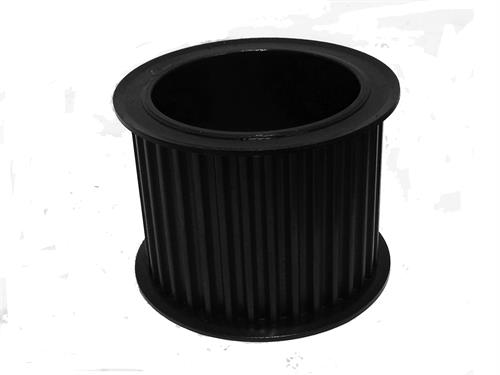

112-8MX62-3020, Timing Pulley, Cast Iron, Black Oxide

Learn more about 112-8MX62-3020 Timing Pulley and Toronto Gear Works. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 112-8MX62-3020
Teeth 112
Tooth Style 8MX
For Belt Width (mm) 62
Type D2
Material Ductile Iron
Finish Black Oxide
Bore Type TL
Bore (in) 3020
Pitch Diameter (in) 11.229
Outside Diameter (in) 11.166
Face Width (in) 2.906
Overall Length (in) 2.906
Min. Bore (in) 0.875
Unit System Inch
Bushing 3020
P.D. (mm) 285.00
O.D. (mm) 283.60
MOQ 1
Weight (lb) 31.00
Part Number Cross Reference 8MX-112S-62, TB 8M-112S-62, B8MCS-112-62, 112G-8M-62-3020, 20296146, 482013, 8MPC112S62, GTR-112G-8M-62, GTR-112G-8M-62, 8MX-112S-62-3020, 112-8MX62-3020

Related Products

Comparable to: 8MX-112S-62, TB 8M-112S-62, B8MCS-112-62, 112G-8M-62-3020, 20296146, 482013, 8MPC112S62, GTR-112G-8M-62, GTR-112G-8M-62, 8MX-112S-62-3020, 112-8MX62-3020
