112-8MX36-3020, Timing Pulley

112-8MX36-3020 - Cast Iron Powerhouse® MX Pulleys

112-8MX36-3020

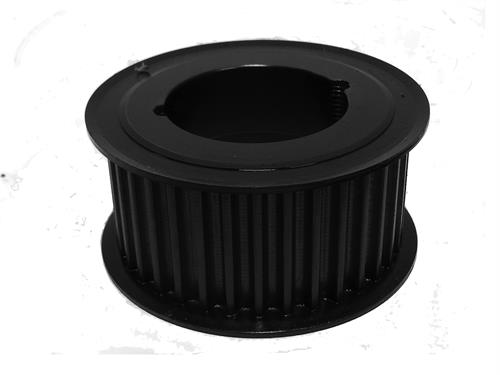

112-8MX36-3020, Timing Pulley, Cast Iron, Black Oxide

Learn more about 112-8MX36-3020 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 112-8MX36-3020
Teeth 112
Tooth Style 8MX
For Belt Width (mm) 36.00
Type C-2
Material Ductile Iron
Finish Black Oxide
Bore Type TL
Bore Description Bored for 3020 Bushing
Pitch Diameter (in) 11.229
Outside Diameter (in) 11.166
Face Width (in) 1.859
Overall Length (in) 2.000
Min. Bore (in) 0.875
Unit System Inch
Bushing 3020
P.D. (mm) 285.00
O.D. (mm) 283.60
MOQ 1
Weight (lb) 21.66
Part Number Cross Reference 8MX-112S-36, B8MCS-112-36, 112G-8M-36-3020, 20296145, 8MX-112S-36-3020 HT500 SPKT, 8MPC112S36, 112-8MX36-3020, 481981, 112-8MX36-3020

Related Products

Comparable to: 8MX-112S-36, B8MCS-112-36, 112G-8M-36-3020, 20296145, 8MX-112S-36-3020 HT500 SPKT, 8MPC112S36, 112-8MX36-3020, 481981, 112-8MX36-3020
