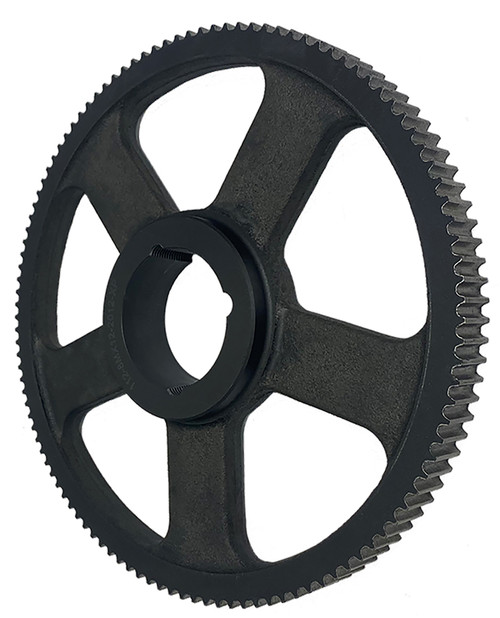

112-8MX12-2012, Timing Pulley

112-8MX12-2012 - Cast Iron Powerhouse® MX Pulleys

112-8MX12-2012

112-8MX12-2012, Timing Pulley, Cast Iron, Black Oxide

Learn more about 112-8MX12-2012 Timing Pulley and Toronto Gear Works. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 112-8MX12-2012
Teeth 112
Tooth Style 8MX
For Belt Width (mm) 12
Type C2
Material Ductile Iron
Finish Black Oxide
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 11.229
Outside Diameter (in) 11.166
Face Width (in) 0.850
Overall Length (in) 1.250
Min. Bore (in) 0.500
Unit System Inch
Bushing 2012
P.D. (mm) 285.00
O.D. (mm) 283.60
MOQ 1
Weight (lb) 10.99
Part Number Cross Reference 8MX-112S-12, 8MX112S12-2012, B8MCS-112-12, 112G-8M-12-2012, 20839765, 481906, 8MPC112S12, 8MX-112S-12-2012, 112-8MX12-2012

Related Products

Comparable to: 8MX-112S-12, 8MX112S12-2012, B8MCS-112-12, 112G-8M-12-2012, 20839765, 481906, 8MPC112S12, 8MX-112S-12-2012, 112-8MX12-2012

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
