112-5M-PS8A Bar Stock

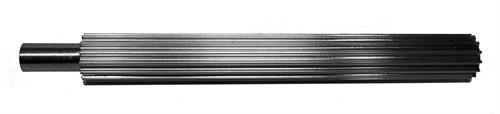

112-5M-PS8A, Timing Pulley Stock, Powerhouse HTD, 8 Inch Usable Length, Aluminum
Specifications
| Product Number | 112-5M-PS8A |
| Teeth | 112 |
| Tooth Style | HTD 5mm |
| Material | Aluminum |
| Pitch Diameter (in) | 7.018 |
| Outside Diameter (in) | 6.973 |
| Overall Length (in) | 9.000 |
| Unit System | Inch |
| Min. Usable Length (in) | 8.000 |
| P.D. (mm) | 178.30 |
| O.D. (mm) | 177.10 |
| Weight (lb) | 26.00 |
| Part Number Cross Reference | 112-5M-PS8A, A 6A24M112TM15, A6A24M112TM15, 112-5M-PS-8A, 112-5M-P- |
Documentation
| Download Catalog | 2015_TGW_CATALOG_298.pdf |
| For custom parts click here | custom.html |
