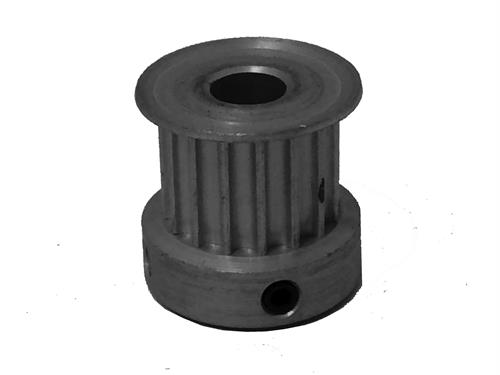

11-3M09M6CA3 Powerhouse™ Htd® Pulleys

11-3M09M6CA3

Product Details for 11-3M09M6CA3

11-3M09M6CA3, Timing Pulley, Teeth;11 | Pitch;HTD 3mm | For Belt Width;9 mm | Configuration;Standard Hub Serves as 2nd Flange and 1 Flange | Bore Size;3 mm | Material;Clear Anodized Aluminum

Specifications

Product Number 11-3M09M6CA3
Teeth 11
Tooth Style HTD 3mm
For Belt Width (mm) 9.000
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 3.00
Set Screw 1 x M2
Pulley Belt Width (mm) 10.20
Unit System Inch
P.D. (mm) 10.50
O.D. (mm) 9.70
Flange Diameter (mm) 13.50
Overall Length (mm) 17.50
Hub Diameter (mm) 13.50
Weight (lb) 0.02
List Price (1-9 Qty.) (CAD) $15.79
Discount Price (10-24 Qty.) (CAD) $15.00
Discount Price (25-49 Qty.) (CAD) $12.63
Discount Price (50-99 Qty.) (CAD) $9.87
Discount Price (100-249 Qty.) (CAD) $8.68
Part Number Cross Reference A 6A23M011DF0903 TP3A3W9M-11

Documentation

General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
