11-3M09-6CA1, Timing Pulley

11-3M09-6CA1 - Aluminum Powerhouse®HTD® Pulleys

11-3M09-6CA1

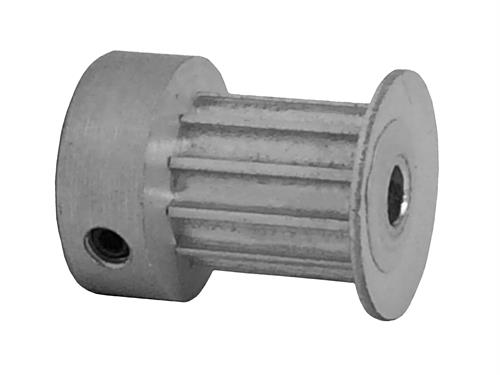

11-3M09-6CA1, Timing Pulley, Aluminum, Clear Anodized

Learn more about 11-3M09-6CA1 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 11-3M09-6CA1
Teeth 11
Tooth Style HTD 3mm
For Belt Width (mm) 9
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 1/8 Inch Finished Bore
Pitch Diameter (in) 0.414
Outside Diameter (in) 0.384
Flange Diameter (in) 0.530
Face Width (in) 0.446
Overall Length (in) 0.681
Hub Diameter (in) 0.530
Min. Bore (in) 0.125
Pulley Belt Width (in) 0.400
Unit System Inch
P.D. (mm) 10.00
O.D. (mm) 9.70
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference P11-3M-09AL, 11-3M09-6CA1
Set Screw Quantity 1
