11-3M06M6CA3 Powerhouse® HTD® Pulleys

11-3M06M6CA3, A 6A23M011DF0603

Product Details for 11-3M06M6CA3

Comparable to: 11-3M06M6CA3, A 6A23M011DF0603, A6A23M011DF0603

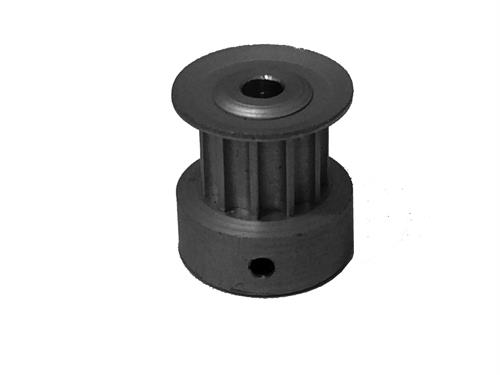

11-3M06M6CA3, Timing Pulley, Powerhouse HTD, 3 mm Bore, Aluminum

Specifications

Product Number 11-3M06M6CA3
Teeth 11
Tooth Style HTD 3mm
For Belt Width (mm) 6.000
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 3.00
Face Width (in) 0.327
Set Screw 1 x M2
Pulley Belt Width (mm) 7.20
Unit System Metric
P.D. (mm) 10.50
O.D. (mm) 9.70
Flange Diameter (mm) 13.50
Overall Length (mm) 14.50
Hub Diameter (mm) 13.50
Weight (lb) 0.02
Part Number Cross Reference 11-3M06M6CA3, A 6A23M011DF0603, A6A23M011DF0603
