11-3M06-6CA1 Powerhouse™ HTD® Pulleys

11-3M06-6CA1, A 6A23-011DF0604, A6A23-011DF0604, P11-3M-06AL, 78821082, PT011F04L0

Product Details for 11-3M06-6CA1

Comparable to: 11-3M06-6CA1, A 6A23-011DF0604, A6A23-011DF0604, P11-3M-06AL, 78821082, PT011F04L0

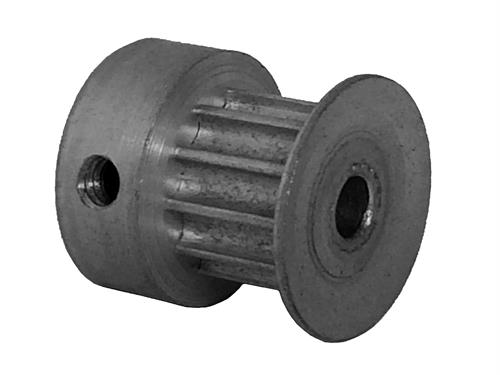

11-3M06-6CA1, Timing Pulley, Powerhouse HTD, 1/8 Inch Bore, Aluminum

Specifications

Product Number 11-3M06-6CA1
Teeth 11
Tooth Style HTD 3mm
For Belt Width (mm) 6.000
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/8 Inch Finished Bore
Pitch Diameter (in) 0.414
Outside Diameter (in) 0.384
Flange Diameter (in) 0.530
Face Width (in) 0.327
Overall Length (in) 0.562
Hub Diameter (in) 0.530
Set Screw 1 x 4-40
Min. Bore (in) 0.125
Pulley Belt Width (in) 0.280
Unit System Inch
Max. Bore (in) 0.28
Weight (lb) 0.02
Part Number Cross Reference 11-3M06-6CA1, A 6A23-011DF0604, A6A23-011DF0604, P11-3M-06AL, 78821082, PT011F04L0

Documentation

Download Catalog 2015_TGW_CATALOG_91.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
