10XL037M3FA6, Timing Pulley

10XL037M3FA6 - Aluminum Metric Pulleys

10XL037M3FA6

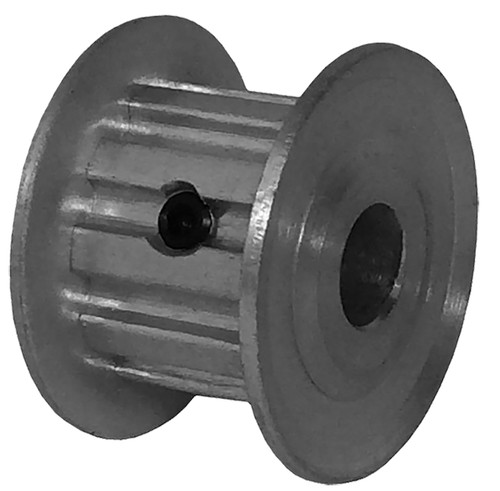

10XL037M3FA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 10XL037M3FA6 Timing Pulley and Toronto Gear Works. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 10XL037M3FA6
Teeth 10
Tooth Style XL
For Belt Width (in) 0.3750
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.637
Outside Diameter (in) 0.617
Flange Diameter (in) 0.875
Pulley Belt Width (mm) 10.90
Unit System Inch
P.D. (mm) 16.00
O.D. (mm) 15.70
Flange Diameter (mm) 22.23
Face Width (mm) 14.20
Overall Length (mm) 14.20
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A3M10H09506, A6A3M10H09506, 10XL037M3FA6
Set Screw Quantity 1
