10XL037-6FS2 Imperial Pitch Pulleys

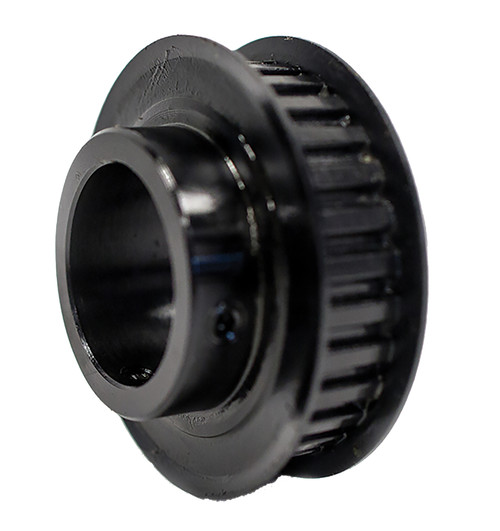

10XL037-6FS2, Timing Pulley, Steel, Black Oxide
Specifications
| Product Number | 10XL037-6FS2 |
| Teeth | 10 |
| Tooth Style | XL |
| For Belt Width (in) | 0.375 |
| Type | 6F |
| Material | Steel |
| Finish | Black Oxide |
| Flange Material | Steel |
| Bore Type | Minimum Plain Bore |
| Bore (in) | 3/16 Inch Finished Bore |
| Pitch Diameter (in) | 0.637 |
| Outside Diameter (in) | 0.617 |
| Flange Diameter (in) | 0.875 |
| Face Width (in) | 0.563 |
| Overall Length (in) | 0.812 |
| Hub Diameter (in) | 0.437 |
| Set Screw | 2 x 6-40 @ 90° |
| Min. Bore (in) | 0.1875 |
| Pulley Belt Width (in) | 0.430 |
| Unit System | Inch |
| Max. Bore (in) | 0.187 |
| MOQ | 1 |
| Weight (lb) | 0.05 |
| Part Number Cross Reference | A 6C3-10DF03706, A6C3-10DF03706, PB10XL037, 78230101, 10XL037, 10XL037-1S X 3/16, 1430701, 10XLB037S, 10XL037-3/16, 20178894, 114300, 10XL037, 10XL037MPB, P10XL037 |
| Set Screw Quantity | 2 |
