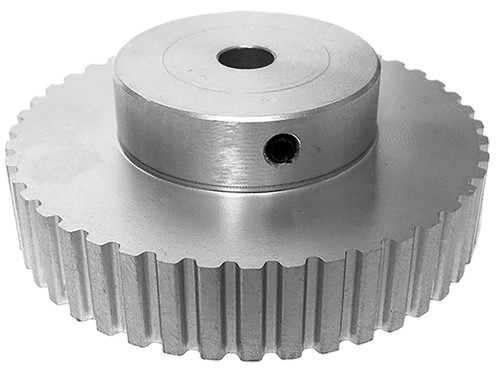

10XL037-6A2, Timing Pulley, Aluminum, Clear Anodized
Learn more about 10XL037-6A2 Timing Pulley and Toronto Gear Works. View product specifications, download a CAD file in your preferred format, or purchase online.
Specifications
Product Number |
10XL037-6A2 |
Teeth |
10 |
Tooth Style |
XL |
For Belt Width (in) |
0.3750 |
Type |
6 |
Material |
Aluminum |
Finish |
Clear Anodized |
Bore Type |
Finished Bore |
Bore (in) |
3/16 Inch Finished Bore |
Pitch Diameter (in) |
0.637 |
Outside Diameter (in) |
0.617 |
Flange Diameter (in) |
0.875 |
Face Width (in) |
0.563 |
Overall Length (in) |
0.812 |
Hub Diameter (in) |
0.437 |
Min. Bore (in) |
0.1875 |
Unit System |
Inch |
P.D. (mm) |
16.00 |
O.D. (mm) |
15.70 |
Flange Diameter (mm) |
22.23 |
MOQ |
1 |
Weight (lb) |
0.02 |
Part Number Cross Reference |
A A-NF, A6A3-10NF03706, PT010D06L06N, 10XL037-2A X 3/16, 10XL037-6A2 |
Set Screw Quantity |
2 |
Related Products
Comparable to: A A-NF, A6A3-10NF03706, PT010D06L06N, 10XL037-2A X 3/16, 10XL037-6A2
