10XL025M6FA6, Timing Pulley

10XL025M6FA6 - Aluminum Metric Pulleys

10XL025M6FA6

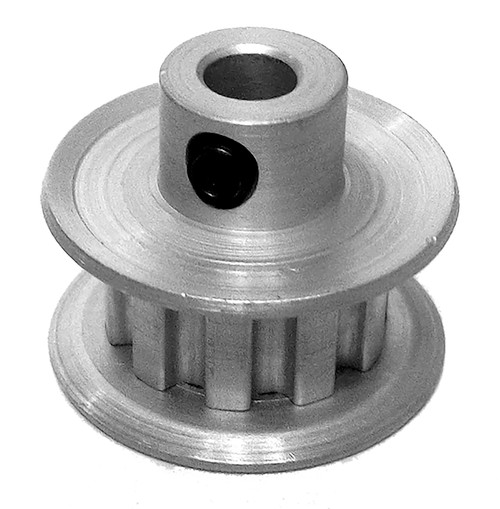

10XL025M6FA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 10XL025M6FA6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 10XL025M6FA6
Teeth 10
Tooth Style XL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.637
Outside Diameter (in) 0.617
Flange Diameter (in) 0.875
Pulley Belt Width (mm) 7.90
Unit System Metric
P.D. (mm) 16.00
O.D. (mm) 15.70
Flange Diameter (mm) 22.23
Face Width (mm) 11.10
Overall Length (mm) 17.50
Hub Diameter (mm) 10.00
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A3M010DF06006, A6A3M010DF06006, 10XL025M6FA6, 10XL025M6FA6
Set Screw Quantity 1
