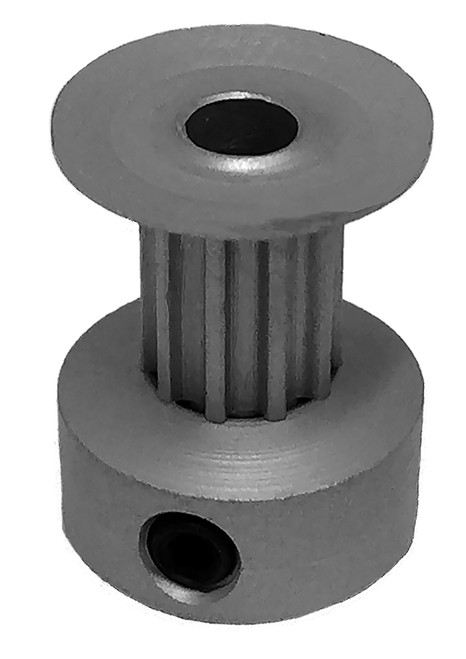

10MP025M6CA3, Timing Pulley

10MP025M6CA3 - Aluminum Metric Pulleys

10MP025M6CA3

10MP025M6CA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 10MP025M6CA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 10MP025M6CA3
Teeth 10
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 3 mm Finished Bore
Bore (mm) 3.00
Pitch Diameter (in) 0.255
Outside Diameter (in) 0.235
Flange Diameter (in) 0.425
Face Width (in) 0.330
Pulley Belt Width (mm) 7.20
Unit System Metric
P.D. (mm) 6.00
O.D. (mm) 6.00
Flange Diameter (mm) 10.80
Overall Length (mm) 14.30
Hub Diameter (mm) 10.80
MOQ 1
Weight (lb) 0.00
Part Number Cross Reference 10MP025M6CA3
Set Screw Quantity 1
