10MP012M6CA3 Metric Pulleys

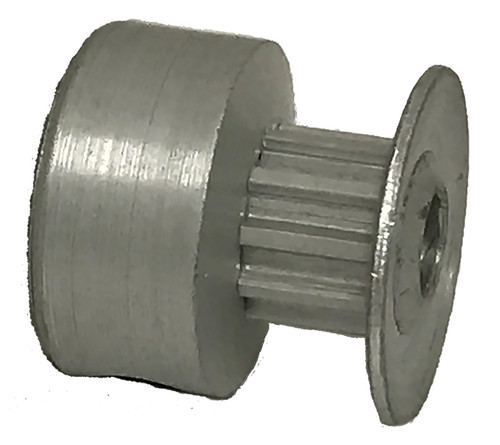

10MP012M6CA3, Timing Pulley, Aluminum, Clear Anodized
Specifications
| Product Number | 10MP012M6CA3 |
| Teeth | 10 |
| Tooth Style | MXL |
| For Belt Width (in) | 0.125 |
| Type | 6C |
| Material | Aluminum |
| Finish | Clear Anodized |
| Flange Material | Aluminum |
| Bore Type | Finished Bore |
| Bore (mm) | 3.00 |
| Face Width (in) | 0.201 |
| Set Screw | 1 x M2 |
| Pulley Belt Width (mm) | 4.00 |
| Unit System | Metric |
| P.D. (mm) | 6.50 |
| O.D. (mm) | 6.00 |
| Flange Diameter (mm) | 10.80 |
| Overall Length (mm) | 11.10 |
| Hub Diameter (mm) | 10.80 |
| MOQ | 1 |
| Weight (lb) | 0.00 |
| Part Number Cross Reference | A 6N16M010DF3003, A6N16M010DF3003, TP7A3MW2-10 |
| Set Screw Quantity | 1 |
