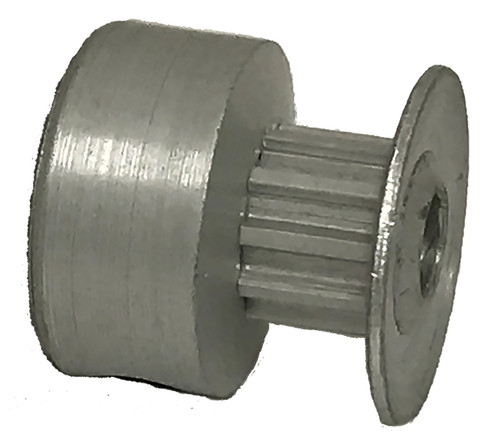

10MP012-6CA1, Timing Pulley

10MP012-6CA1 - Aluminum Imperial Pitch Pulleys

10MP012-6CA1

10MP012-6CA1, Timing Pulley, Aluminum, Clear Anodized

Learn more about 10MP012-6CA1 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 10MP012-6CA1
Teeth 10
Tooth Style MXL
For Belt Width (in) 0.1250
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.125
Bore Description 1/8 Inch Finished Bore
Pitch Diameter (in) 0.255
Outside Diameter (in) 0.235
Flange Diameter (in) 0.425
Face Width (in) 0.201
Overall Length (in) 0.438
Hub Diameter (in) 0.425
Min. Bore (in) 0.125
Pulley Belt Width (in) 0.160
Unit System Inch
P.D. (mm) 6.00
O.D. (mm) 6.00
Flange Diameter (mm) 10.80
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference PB10MXL012, 10MP012-6CA1
Set Screw Quantity 1
