10L050-6FS5, Timing Pulley

10L050-6FS5 - Steel Imperial Pitch Pulleys

10L050-6FS5

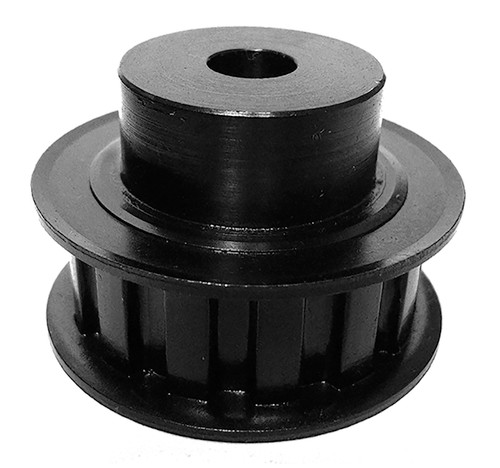

10L050-6FS5, Timing Pulley, Steel, Black Oxide

Learn more about 10L050-6FS5 Timing Pulley and Toronto Gear Works. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 10L050-6FS5
Teeth 10
Tooth Style L
For Belt Width (in) 0.5000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 3/8 Inch Minimum Plain Bore
Pitch Diameter (in) 1.194
Outside Diameter (in) 1.164
Flange Diameter (in) 1.438
Face Width (in) 0.750
Overall Length (in) 1.250
Hub Diameter (in) 0.812
Min. Bore (in) 0.375
Pulley Belt Width (in) 0.570
Unit System Inch
P.D. (mm) 30.00
O.D. (mm) 29.60
MOQ 1
Weight (lb) 0.30
Part Number Cross Reference A 6C4-10DFB5012, A6C4-10DFB5012, PB10L050, 10L050, 10L050-3/8, 20178893, 113450, 10L050, P10L050, M10L050, 10L050-6FS5
