10L050-6FA6 Imperial Pitch Pulleys

10L050-6FA6 - Aluminum Imperial Pitch Pulleys

Product Details for 10L050-6FA6

Comparable to: A 6A4-10DF05016, A6A4-10DF05016, 10L050-1A X 1/2

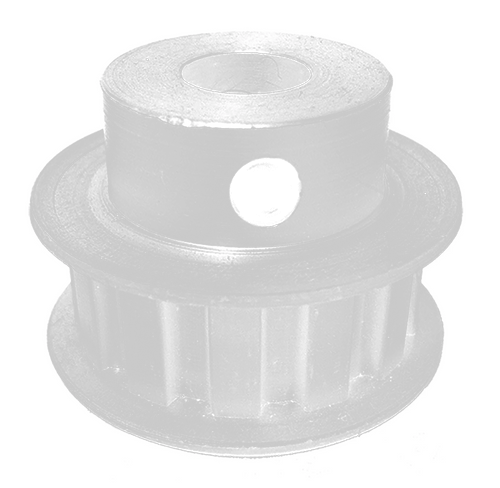

10L050-6FA6, Timing Pulley, Aluminum, Clear Anodized

Specifications

Product Number 10L050-6FA6
Teeth 10
Tooth Style L
For Belt Width (in) 0.500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 1.194
Outside Diameter (in) 1.164
Flange Diameter (in) 1.438
Face Width (in) 0.719
Overall Length (in) 1.125
Hub Diameter (in) 0.875
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.560
Unit System Inch
MOQ 1
Weight (lb) 0.09
Part Number Cross Reference A 6A4-10DF05016, A6A4-10DF05016, 10L050-1A X 1/2
Set Screw Quantity 2
